Adapter that turns the mikroBUS through ninety degrees: the Click module lies flat instead of standing up, to fit a low enclosure. Both connectors are soldered and the pin 1 marker is printed on the board. All sixteen signals pass through, including the 3.3 V and 5 V rails. Designed and made by ISNO, open files.
Riser board that takes a Click module above the Super, upright. The female mikroBUS socket is soldered on top and the board-side connector underneath: nothing to solder, nothing to add. All sixteen signals pass through, including the 3.3 V and 5 V rails. Designed and made by ISNO, open files.
Delivery within 2 to 4 business days.
Sensirion SHT40 sensor on a mikroBUS board, I²C. Temperature and relative humidity for an ambient station, at a modest price. Runs on both 3.3 V and 5 V.
Delivery within 2 to 4 business days.
AH1389 magnetic detector on a mikroBUS board, with relay output. Detects a magnet without contact: door opening, shutter position, revolution counting.
Delivery within 2 to 4 business days.
Flicker board on a mikroBUS socket: a single Omron G6D relay driven by a timer. Two potentiometers set the on and off times, from 0.1 to 6 s, to flash a load: a signal light, a warning lamp or an alarm.
Delivery within 2 to 4 business days.
Vishay VEML7700 sensor on a mikroBUS board. Ambient light in lux over a wide range, via I²C, with a response close to the human eye.
Delivery within 2 to 4 business days.
Infineon DPS422 sensor on a mikroBUS board. Barometric pressure and temperature over I²C or SPI, with very low power draw for battery builds.
Delivery within 2 to 4 business days.
Bosch BMP280 barometer on a mikroBUS board. Atmospheric pressure and temperature over I²C or SPI, fine enough to work as a metre-accurate altimeter.
Delivery within 2 to 4 business days.

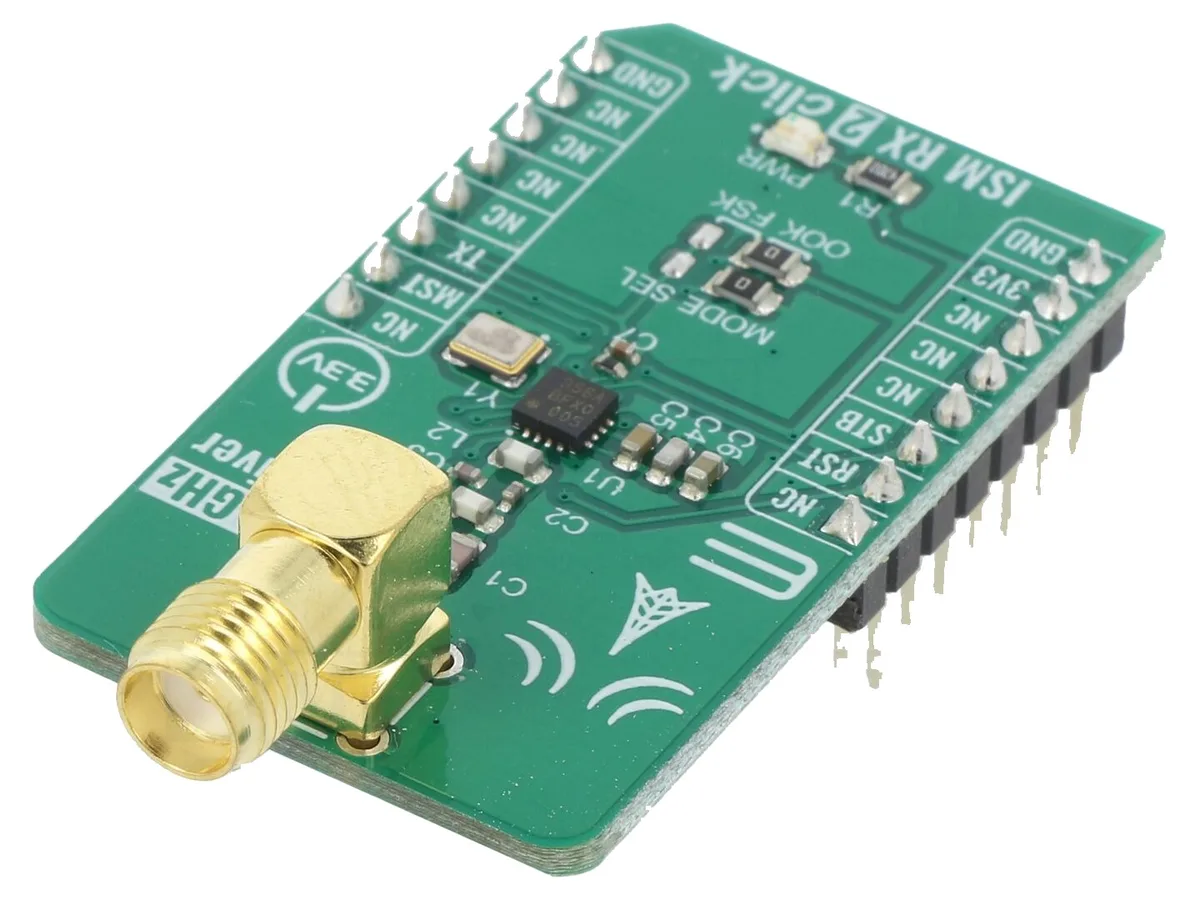

Silicon Labs Si4356 receiver on a mikroBUS board, 284 to 960 MHz. Set by jumpers, no driver needed: handy to listen to an ISM band next to a transmitter.
